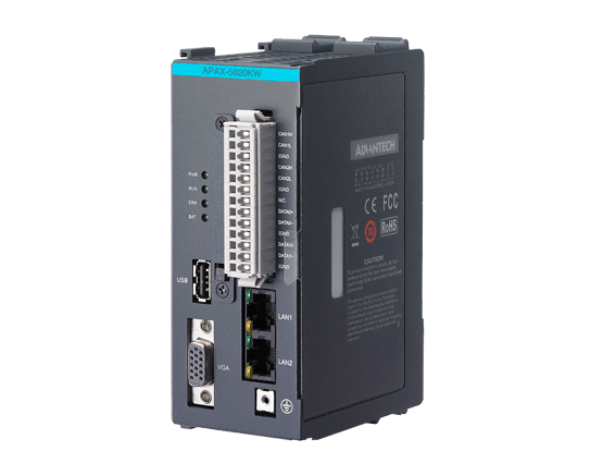

APAX-5620KW

PAC with Marvel XScale CPU, CAN, KW

 · Onboard Intel XScale® PXA270 520 MHz processor

 · 64 MB SDRAM on board, 32 MB Flash

 · Expands I/O by connecting with APAX-5000 I/O modules

 · 2 x 10/100 Mbps RJ-45 LAN ports and 2 x Isolated RS-485 ports

 · 2 x Isolated CAN bus interfaces to support CANOpen stack

 · 1 x VGA port for display and 1 x USB port

 · 1 x CompactFlash slot for data storage

 · Windows CE, C/C++, .NET ready platform

      APAX-5620KW is a RISC-based Controller with an Intel XScale PXA270 CP. It also features two CAN bus interfaces, which support CANOpen stack (DS301 & 302), and two RS-485 ports allowing it to connect to remote I/O devices as well as being able to support up to 32 APAX I/O modules. The APAX-5620KW supports Microsoft Visual Studio, and  .Net programming language, thereby allowing PC-based users to easily develop their own applications. It is also compatible with IEC-61131-3 based Multiprog KW languages, which allow users to download change functions and time deterministic support. With these great features, the APAX-5620 is an excellent cost-effective solution for a wide range of applications, such as steel production monitoring, spinning & weaving machinery, factory automation, and tunnels & freeways.
