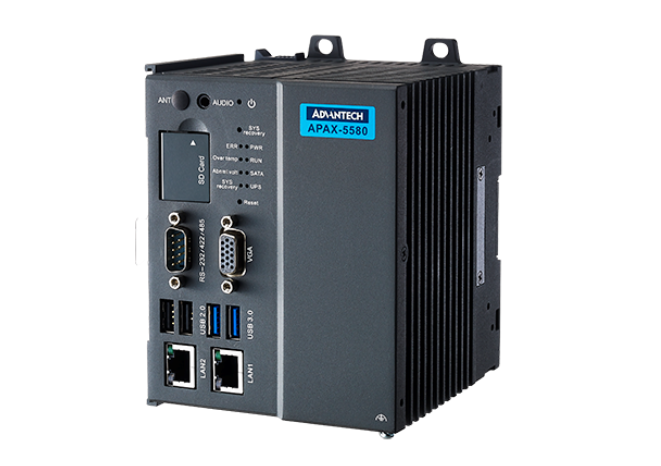

APAX-5580

Intel® Core™ i7/i3/Celeron DIN-Rail IPC w/ 2 x GbE, 2 x mPCIe, VGA

 · 4th Generation Intel® Core™ i7/i3/Celeron Processors up to 1.7 GHz with 4GB/8GB DDR3L Memory

 · 2 x GbE, 4 x USB 2.0/3.0, 1 x RS-232 /422/485, 1 x VGA, Audio

 · Dual power input and UPS support

 · 3G/GPS/GPRS/Wi-Fi Communication by mPCIe

 · LAN Redundancy (Teaming)

 · Fault-Protected RS-485 Transceivers With Extended Common-Mode Range

 · One button system recovery

 · 10 year lifetime RTC battery

      Advantech's APAX-5580 is a powerful DIN-Rail IPC with an Intel Core i7/i3/Celeron CPU. It is the ideal open control platform to be combined with APAX I/O modules, and features flexible I/O expansion, real-time I/O control, network capability through various interfaces, and support dual power input and UPS module for robust power system. It also has
a built-in the standard mini PCI express interface for wireless communication and Advantech's iDoor technology. The APAX-5580 is the best solution for data gateway, concentrator and data server applications, its seamless integration with I/O can save your costs and fulfill a diverse range of automation projects.
